Photovoltaic Wire Copper of Rated 1000/2000V High-Flex
CONSTRUCTION
Single Flex Bare Copper Conductor with XLPE Composite Insulation
Rated voltage
: 1000/2000V
Conductor
: Copper conductor
Inner layer
: Cross-Linked Polyethylene (XLPE)
Outer layer
: Cross-Linked Polyethylene (XLPE)
Environmental
: UV/Sunlight Resistant
Burning characteristics
: FV-1
Marking

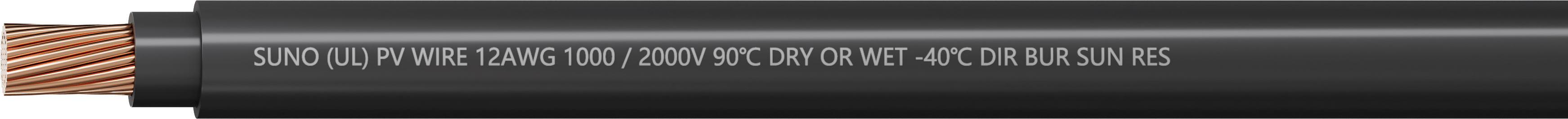

: For example: "SUNO (UL) PV WIRE 12AWG 1000/2000V 90℃ DRY OR WET -40℃ DIR BUR SUN RES ****FT (2023/5/15 10:10:10)"
APPLICATION
Stranded copper conductor 14AWG through 1000kcmil XLPE composite insulated solar cable.
For use in solar power applications per NEC Article 690.
Rated 90℃ for exposed or concealed wiring in wet or dry locations.
Rated for direct burial.
OPTIONS
Rated voltage
: 600V
Rated temperature
: Rated 105℃
Conductor
: Tinned copper conductor per ASTM B33
Inner layer
: Black
Outer layer
: Black Red White
Outer layer
: Color stripes
Burning level
: VW-1
STANDARDS APPLIED
ASTM B801
: Standard Specification for Concentric-Lay-Stranded Conductors of 8000 Series Aluminum
AA 8176
: Stranded Aluminum Alloy Conductors
UL 44
: Thermoset-Insulated Wires and Cables
UL 854
: Service-entrance cables
UL 4703
: Photovoltaic Wire
VW-1
: Vertical-Wire Flame Test (Optional)
RoHS
