Photovoltaic Wire Aluminum of Rated 1000/2000V DC Feeder

CONSTRUCTION

Single Input Wire XLPE Insulation

Rated voltage

: 1000/2000V

Conductor

: Aluminum alloy conductor

Insulation

: Cross-Linked Polyethylene (XLPE)

Environmental

: UV/Sunlight Resistant

Burning characteristics

: FT-2

Marking

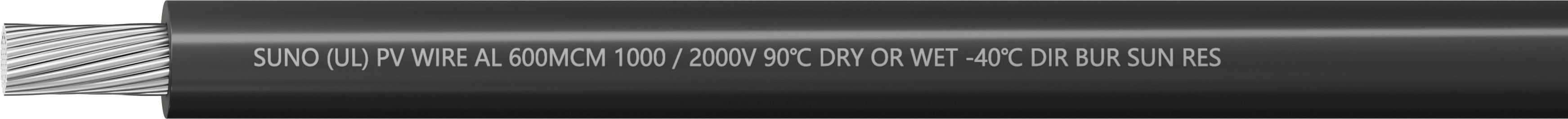

: For example: "SUNO (UL) PV WIRE AL 12AWG 1000/2000V 90℃ DRY OR WET -40℃ DIR BUR SUN RES ****FT (2023/5/15 10:10:10)"

Aluminum alloy conductor 12AWG through 1500kcmil XL insulated solar cable (AA-8176).

For use in solar power applications per NEC Article 690.

Rated 90℃ for exposed or concealed wiring in wet or dry locations.

Rated for direct burial.

Rated voltage

: 600V

Insulation color

: Black Red White

Burning level

: VW-1

ASTM B801

: Standard Specification for Concentric-Lay-Stranded Conductors of 8000 Series Aluminum

AA 8176

: Stranded Aluminum Alloy Conductors

UL 44

: Thermoset-Insulated Wires and Cables

UL 854

: Service-entrance cables

UL 4703

: Photovoltaic Wire

VW-1

: Vertical-Wire Flame Test (Optional)

RoHS
