MV-105 5-35 kV Single AL Conductors

URD Type (Underground Residential Distribution)

CONSTRUCTION

Stranded compressed aluminum conductor, triple extruded conductor shield, insulation and insulation shield, copper wire screened, XLPE jacket.

Conductor

: Electrolytic compressed aluminum class 2 (Soft 1350-H19 aluminum)

Conductor Shield

: Conventional semi-conducting extruded layer

Insulation

: Tree retardant crosslinked polyethylene(TR-XLPE)

Insulation Shield

: Semi-conducting extruded layer, easy strippable.

Concentric Neutral

: Helically applied soft drawn bare copper.

Outer Jacket

: Sun-resistant, crosslinked polyethylene (XLPE) jacket, black with red extruded stripes

Marking

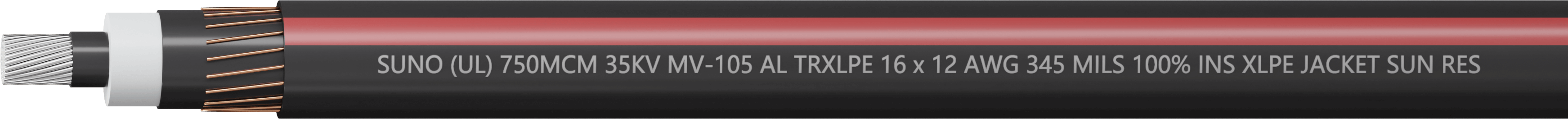

: E,g. "SUNO (UL) 4/0 AWG 35KV MV-105 AL TRXLPE 1/3 CN: 11x14 AWG 345 MILS 100% INS XLPE JACKET SUN RES **** FT (2023/5/15 10:10:10)"

APPLICATION

Used for medium voltage installations or distribution networks both indoors and outdoors. Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

Cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, sunlight, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation. Insulation level 100% Insulation or 133% Insulation.

OPTIONS

Rated voltage

: 5~35 kV

Insulation level

: 100% or 133%

Concentric Neutral

: Copper tape shield

Concentric Neutral level

: 1/3, 1/6, or customized

Outer Jacket

: XLPE or PVC

Jacket colors

: Black with three red stripes

STANDARDS APPLIED

UL1072

: Medium-voltage power cables

ICEA S-94-649

: Concentric neutral cables rated 5-46 kV

AEIC CS8

: Specifications for extruded dielectric, shielded power cables rated 5-46 kV
