Harness
String Harness Specifications Rated for1500V PV Systems

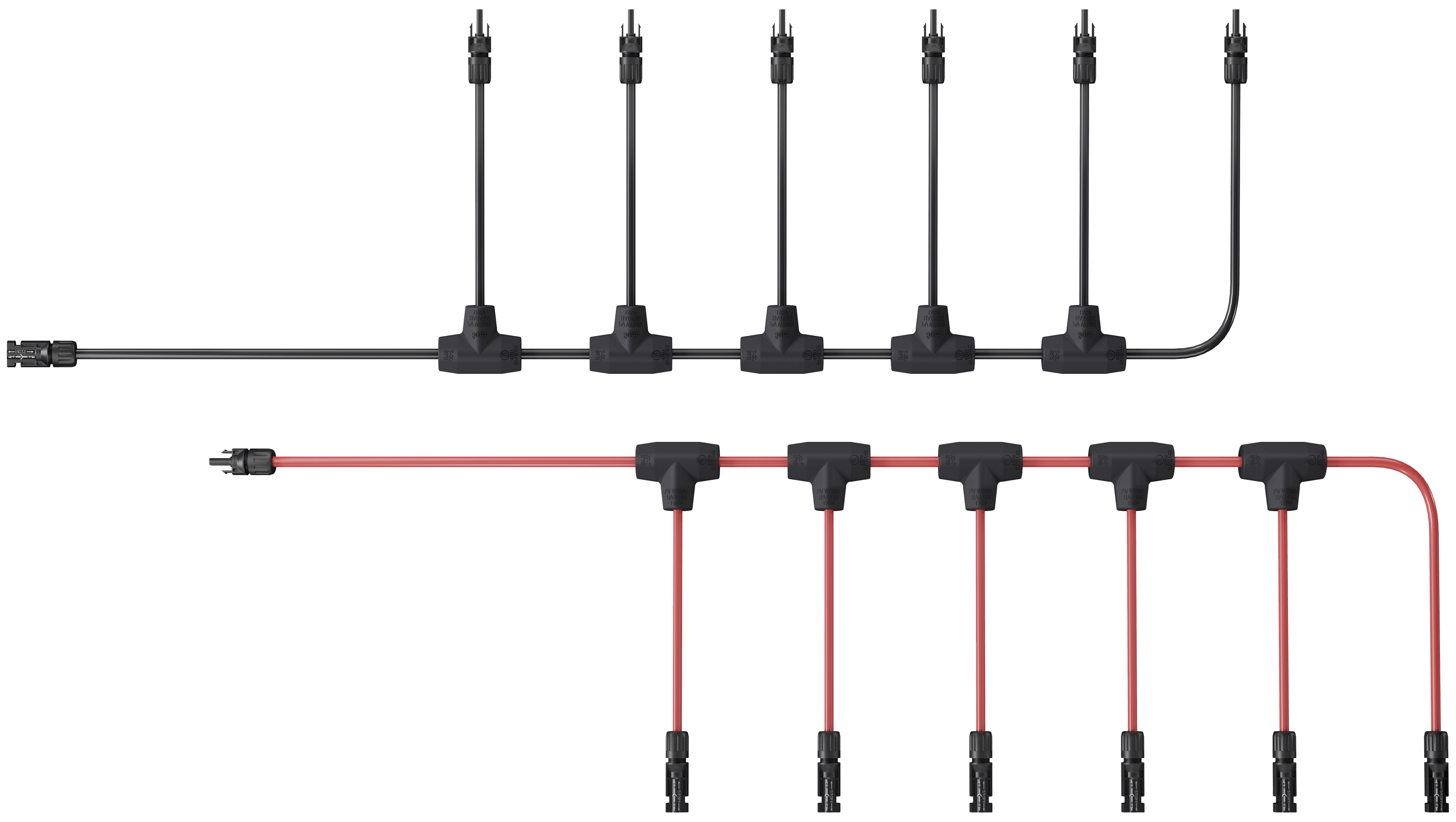

PV wiring harnesses intended to interconnect distributed generation system devices. Developed and upgraded based on fifteen years of experience in the production of building pre branch cable products. The product has a special cable connection technology with research and development patents
Feature
Good insulation resistance performance, withstand voltage performance.
Small contact resistance at branch connection, ratio of contact resistance and basis resistance on the same length of pre-branch cable ≤1.2
Good flame retardancy, the flame retardancy of cables reaches VW-1, and the flame retardancy of injection molded parts reaches 5VA
Excellent elastomer material, the material reaches the F1 outdoor grade, can withstand sunlight for a long time, waterproof, and will not be affected by thermal expansion and contraction
A variety of models are available, which can be adapted to various fixed brackets, movable brackets, single-sided components, and double-sided components
Complete quality inspection Visual Inspection, Continuity Test, weight check, wet-leakage testing
Connect of main and branch cable is used advanced impaction technology The wholeof branck partf ull mechanical work is applied avoid bad quality by man-made factor
TECHNICAL DATA
OPTIONS
EXAMPLE
X, Y, and T-type overmolded parts can be used either independently with photovoltaic connectors or in combination with photovoltaic in-line fuses to provide protection for circuits, components, and inverter equipment.
The In-line Fuse is used for the lines of the photovoltaic power station that need fuse protection
